Architecture

This page gives a technical overview of how AlloyGBM is organized internally.

High-level component layout

The repository is split into Rust workspace crates plus Python bindings:

  • crates/core – shared data contracts, matrices, gradients, artifacts, and NaN handling.

  • crates/engine – training logic, objective implementations, and policy-driven iteration control.

  • crates/backend_cpu – CPU histogram building, split evaluation, and NaN-aware partitioning.

  • crates/predictor – artifact-backed prediction with post-transform support, including sigmoid for classification.

  • crates/shap – TreeSHAP explanation support using polynomial-time exact Shapley values.

  • crates/categorical – categorical support helpers such as target encoding and frequency encoding.

  • bindings/python – Python extension module and public package (GBMRegressor, GBMClassifier, GBMRanker).

Objective implementations

The engine implements a generic ObjectiveOps trait with these concrete objectives:

  • SquaredErrorObjective – MSE loss for regression

  • BinaryCrossEntropyObjective – log-loss for binary classification

  • RankPairwiseObjective – RankNet pairwise logistic

  • RankNdcgObjective – LambdaMART with NDCG weighting

  • RankXendcgObjective – cross-entropy approximation to NDCG

  • QueryRmseObjective – query-grouped RMSE

  • YetiRankObjective – stochastic NDCG-weighted pairwise

Training pipeline

At a high level, Python training flows like this:

  1. Python input validation and coercion

  2. dense fast-path detection for array-like inputs

  3. continuous-feature quantization when needed (up to 65,535 bins)

  4. NaN handling – missing values are routed to a dedicated bin

  5. Rust engine training with the selected objective

  6. artifact serialization (includes objective metadata for post-transforms)

  7. native predictor handle creation for later inference

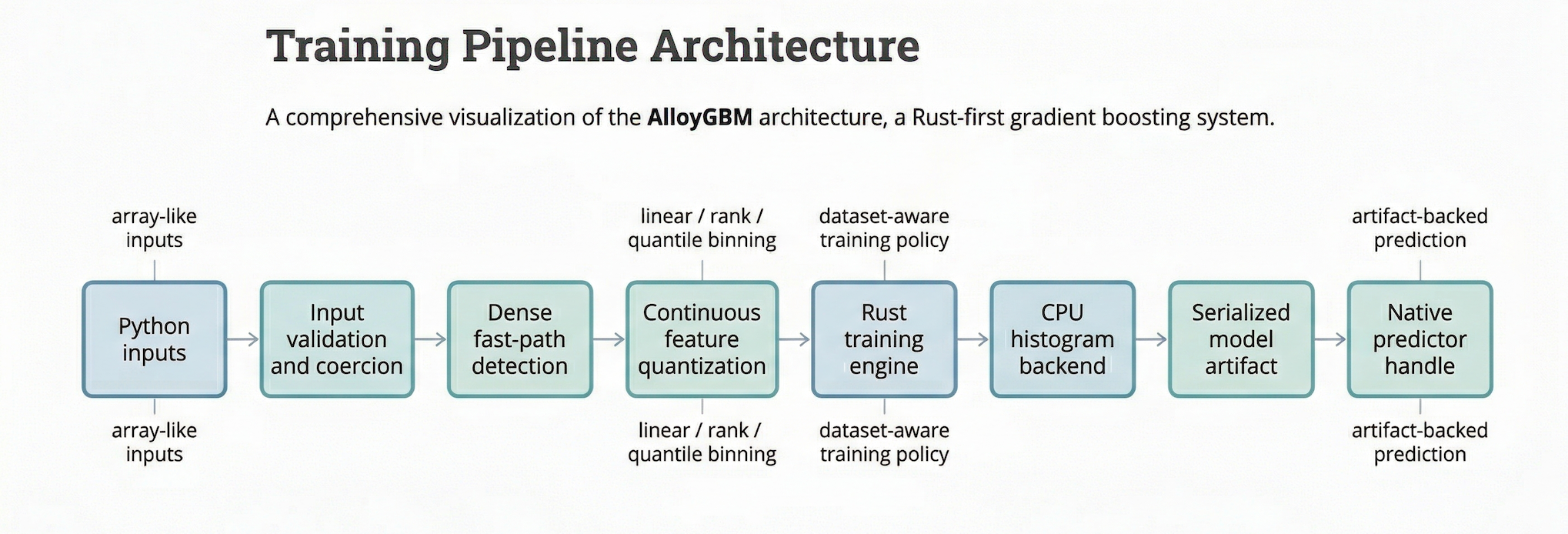

AlloyGBM training pipeline from Python inputs through quantization, engine training, backend execution, artifact serialization, and native predictor creation.

High-level AlloyGBM training pipeline from Python inputs to serialized model artifact and native predictor handle.

Tree growth strategies

AlloyGBM supports two tree growth strategies:

  • Level-wise (default): grows trees level-by-level, expanding all nodes at the current depth before moving deeper

  • Leaf-wise: grows trees by selecting the leaf with the highest split gain at each step, similar to LightGBM’s strategy

Artifact design

AlloyGBM keeps a binary artifact format with magic bytes AGBM and versioned sections:

  • Trees section

  • PredictorLayout section (includes objective type for post-transforms)

  • CategoricalState section

  • JSON metadata header

Artifact-backed inference is part of the public Python story, and the format supports model persistence via pickle, save_model/load_model, and raw byte export.

Recent design choices

The current codebase includes several design decisions:

  • dense native ingestion paths to avoid unnecessary Python row materialization

  • flat histogram storage for better cache behavior, with buffer reuse across rounds

  • dataset-aware training policy in auto mode

  • NaN-aware histogram building and split finding

  • adaptive u8/u16 bin storage (u8 for <=256 bins, u16 for larger)

  • monotone constraint enforcement during split finding

  • feature weight integration into split candidate selection

  • optional node statistics for later introspection

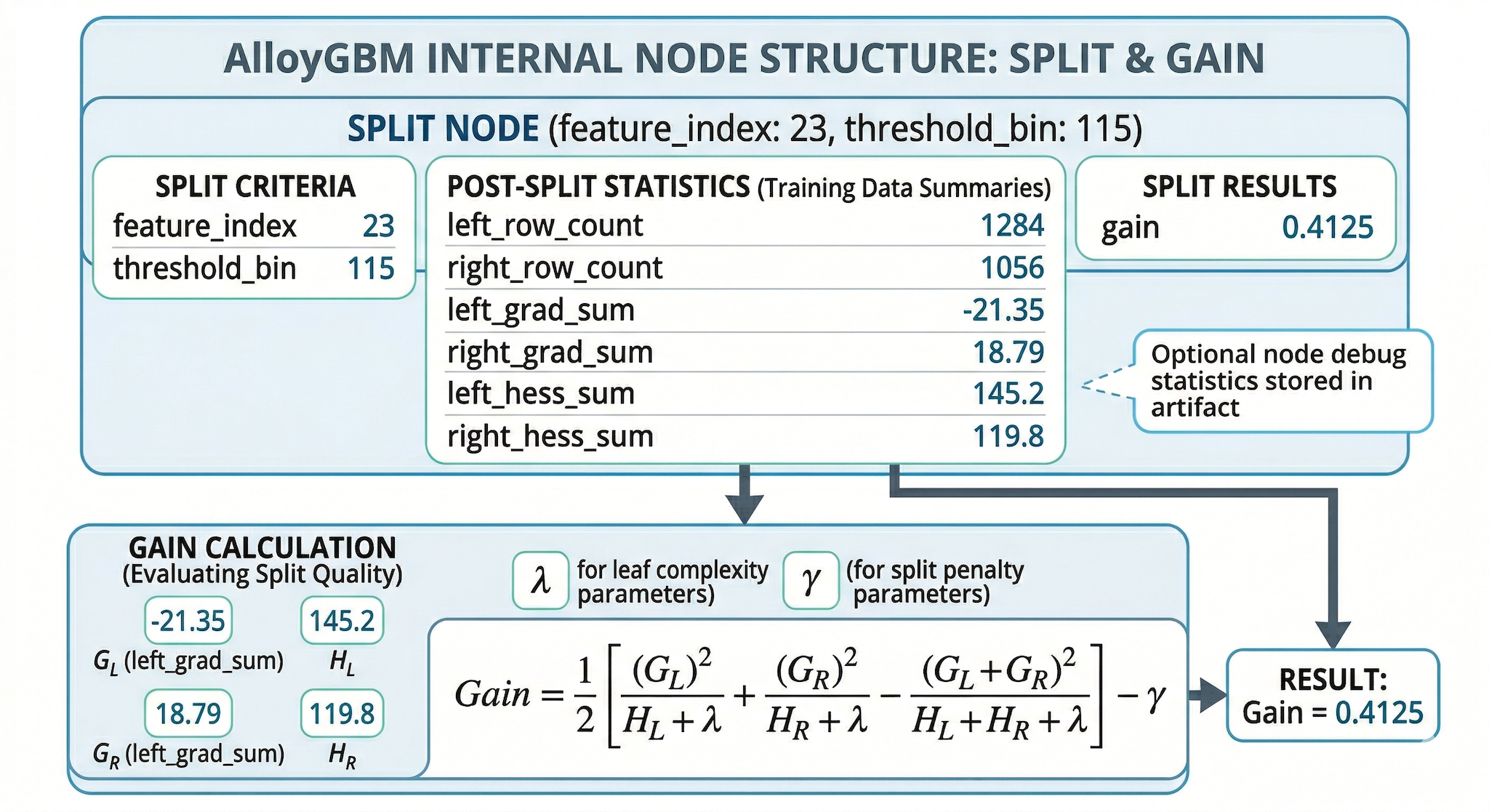

AlloyGBM split node structure showing threshold bin, gain, child nodes, and optional node statistics.

Conceptual split-node structure used to explain artifact layout and optional node-level diagnostics.
